PRODUCT INTRODUCTION

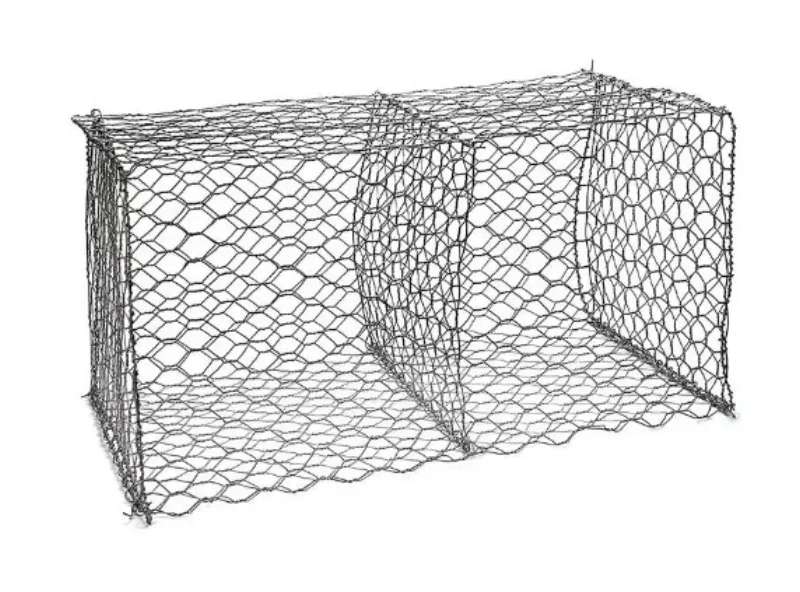

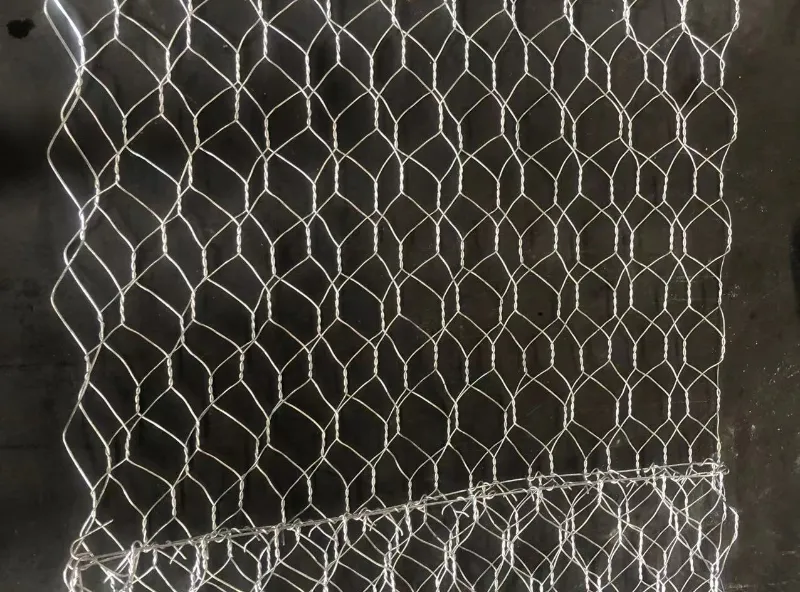

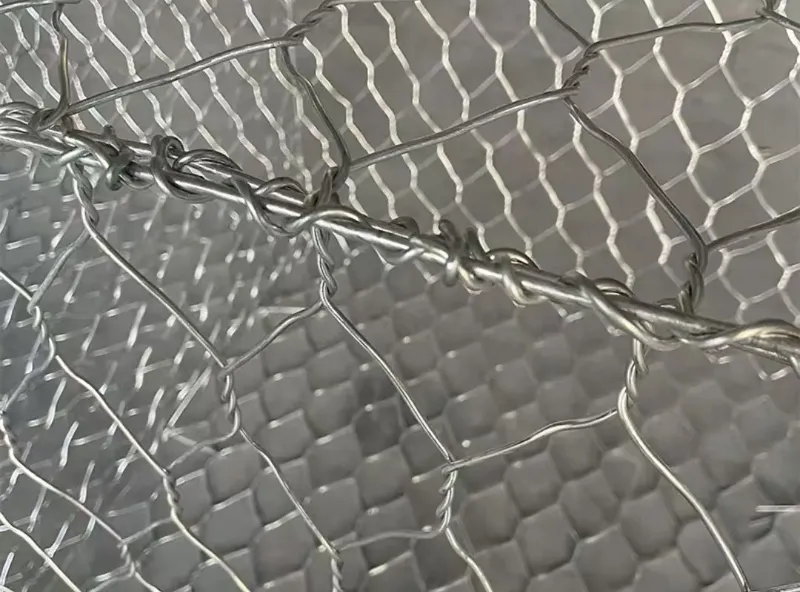

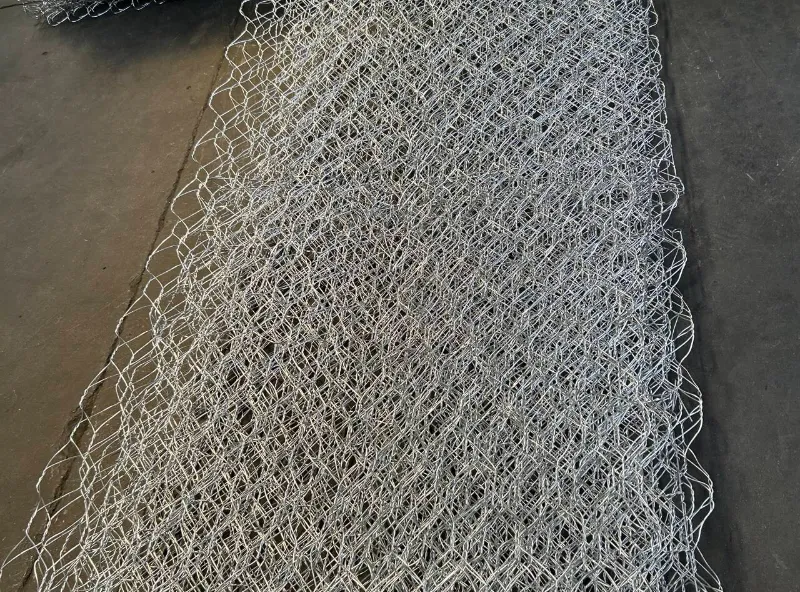

Gabion mesh is made of low-carbon steel wire with high corrosion resistance, high strength, and ductility, or steel wire coated with PVC, which is mechanically woven. The box shaped structure made of this net is the gabion net cage. According to ASTM and EN standards, the diameter of low-carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the gabion mesh steel wire is not less than 38kg/m2, the weight of the metal coating is generally higher than 245g/m², and the diameter of the edge line of the gabion mesh is generally larger than that of the wire mesh. The length of the twisted part of the double wire shall not be less than 50mm to ensure that the metal coating and PVC coating of the twisted part steel wire are not damaged.

TYPE	Hole	Length	Width	Height
	mm	m	m	m
ZH-001	60*80	1-6	1-2	0.3-2
ZH-002	80*100	1-6	1-2	0.3-2
ZH-003	100*120	1-6	1-2	0.3-2
ZH-004	120*150	1-6	1-2	0.3-2
ZH-005	90*110	1-6	1-2	0.3-2

Characteristic

1. Flexible structures can adapt to changes in slopes without being damaged, and have better safety and stability than rigid structures;

2. Strong anti erosion ability, able to withstand water flow speeds up to 6m/s;

3. Essentially, all structures have permeability,.

Application

1. Slope support, foundation pit support

2. Hanging nets on the rock surface of the mountain

3. Slope vegetation (greening)

4. It can also be made into cages and mesh mats for anti erosion protection of rivers, dams, and seawalls

Material

1. Electro galvanized

2. Hot dip galvanized

3. Galfan

PRODUCTION PROCESS

raw material selection (wire rod)

cold drawing/galvanizing/plastic wrapping

machine weaving

manual cutting and assembly

product inspection

packaging and transportation
